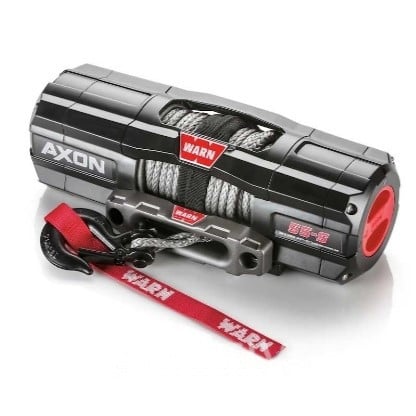

warn-axon-55-s-winch

warn-axon-55-s-winch

Regular price $871.99
Regular price Sale price $871.99
Sale Sold out
  • Heavy Duty, small winch made to fit behind your bumper skin and directly onto our hidden winch mount
  • 5500 lb. capacity (first pass on drum)

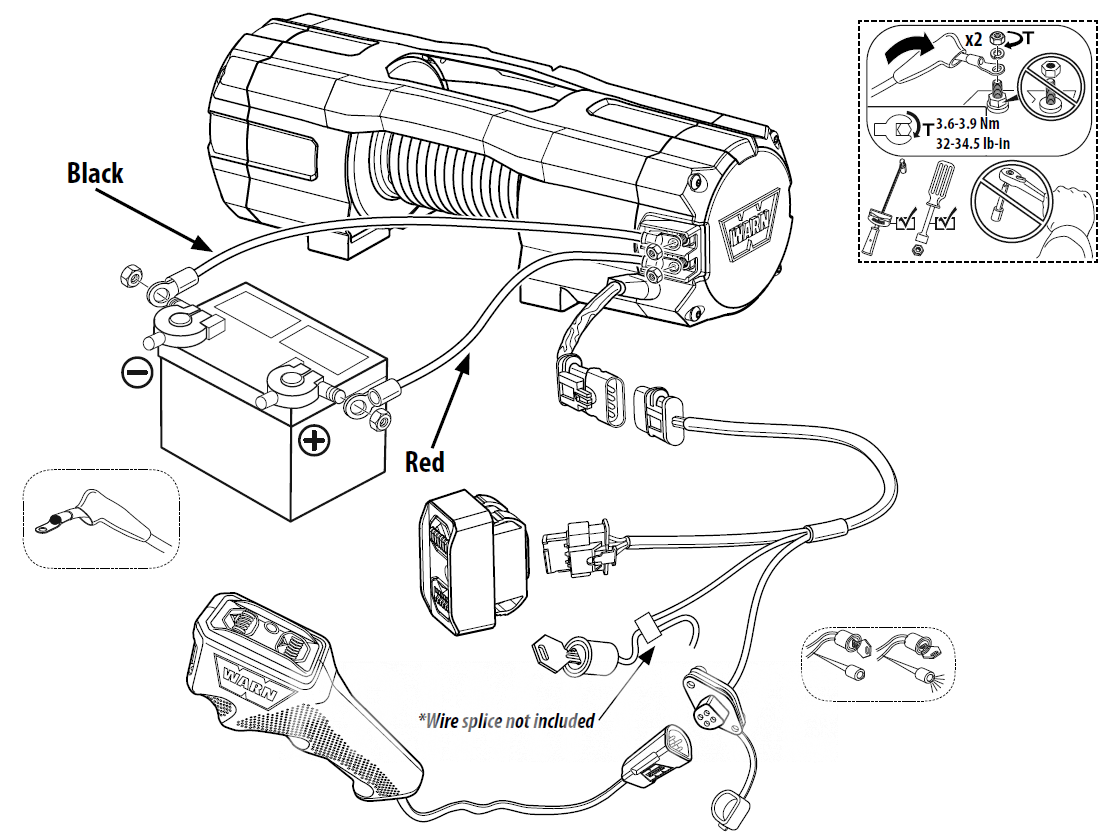

  • Easy wiring due to integrated motor controller

Quantity

SKU: AXON 55 S 101150

View full details
  • Warn Axon 55-S Winch comes with 50’ of lightweight, easy-to-handle ¼” Spydura synthetic rope, an Epic hawse fairlead, and a black hook
  • Massive 5,500 lb. capacity for the biggest UTVs and biggest pulls

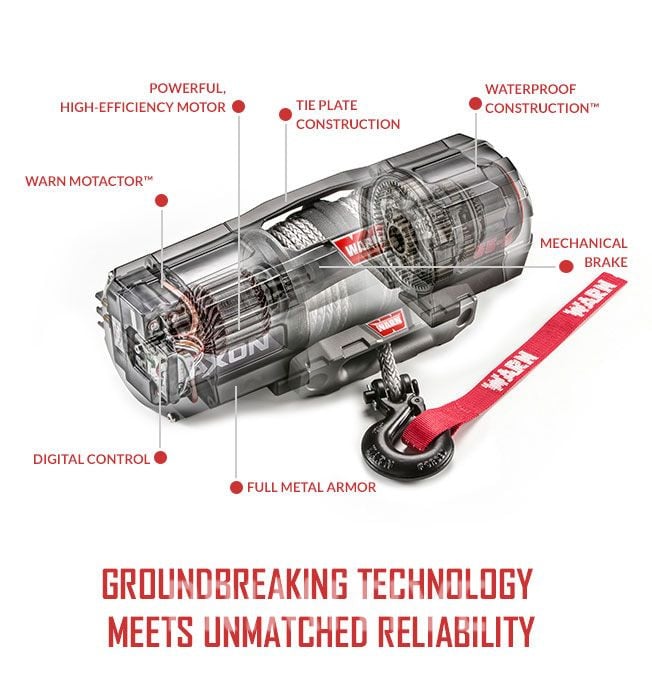

  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • IP68 waterproofing keeps water and the elements out
  • Digital control offers never-before seen levels of reliability and user feedback, including providing load and temperature info
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Load-holding brake for great control
  • Smooth and reliable all-metal three-stage planetary gear train

Manufactured In:The USA
Gear Ratio:239:1
Speed:16 ft./ min with no load
4.8 ft./min with full load
Weight:21.5 lbs without mount
Winch Motor:12V DC, 1.4 hp (1.0 kW) Permanent Magnet, Sealed
Cable:50' of 1/4
Fairlead:Hawse fairlead
Gear Train:3-stage planetary
Sealing:IP68 waterproof
