Skid Plate Package 20-23 Crosstrek (CVT Trans)

Skid Plate Package 20-23 Crosstrek (CVT Trans)

Regular price From: $776.00

Buy in a package and save 10%.

Triple Armor, comes standard with all three of our popular skidplates:

  • 3/16″ Front Skidplate
  • 3/16″ Transmission Skidplate
  • 3/16″ Uni 1-Bolt Rear Differential Skidplate

Scroll Down to build your custom package:

  • Have us modify the plate to work with the Rally Innovations lightbar
  • Add the optional oil hole for ease of access for oil changes
  • Add a Convenient Fumoto Oil Drain plug valve

Schedule an Install at Primitive (Tigard,OR) Here

SKU: CP Skid Plate Package 20-23 Crosstrek (CVT Trans)

View full details

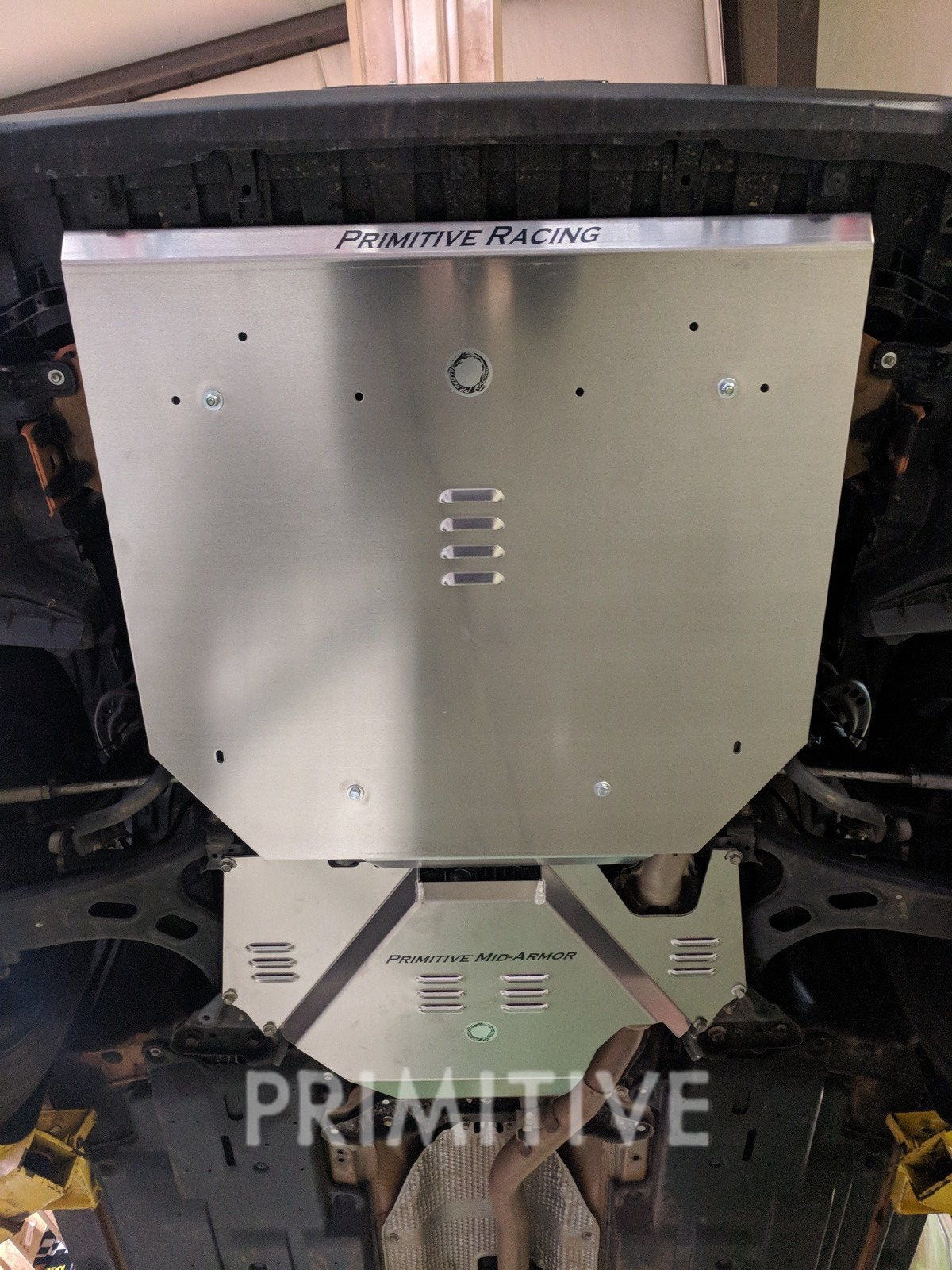

Front Skidplate

The Front Skidplate is included in this package. It protects the vital parts on the bottom of your engine. Add the Rally Innovations lightbar modification below if you plan to install it with the Rally Innovations Light bar.

18-23 Crosstrek 3/16"

• Can be customized to fit with the Rally Innovations Light Bar.
• Made from rugged 3/16 thick Aluminum.
• Easy to install.
• Weighs 18.85 pounds

$408.00$408.00

Optional Accessories: Oil Hole & Fumoto Valve

The oil change access holes will allow you to change your oil without having to remove your skidplate. The Fumoto Valve is an extremely convenient accessory, it replaces your stock drain plug with a fool proof valve that makes oil changes a tool and mess free job.

  • Choose "No Optional Accessories" to get the plate without an Oil Hole or Fumoto Valve.
  • Fumoto Valve not available without an Oil Hole because of clearance issues.
Select your options:
Oil Hole and Fumoto Valve (F108N)
$20.00

Transmission Skidplate

The Transmission Skidplate is included in this package. It protects the vulnerable CVT oil pan. A relatively small hit can cause an expensive repair bill and potentially leave you stranded.

3/16" Transmission Skid Plate 17+ Imp. (NA), 18+ Crosstrek & 19+ Forester, 2020+ Outback & XT

• 3/16” 5052 Aluminum.
• Polished Finish.
• Protects Transmission.
• Bolts directly to the frame.
• Weighs 8.95 lbs
• Schedule an install at Primitive (Tigard,OR) Here

$239.00$239.00

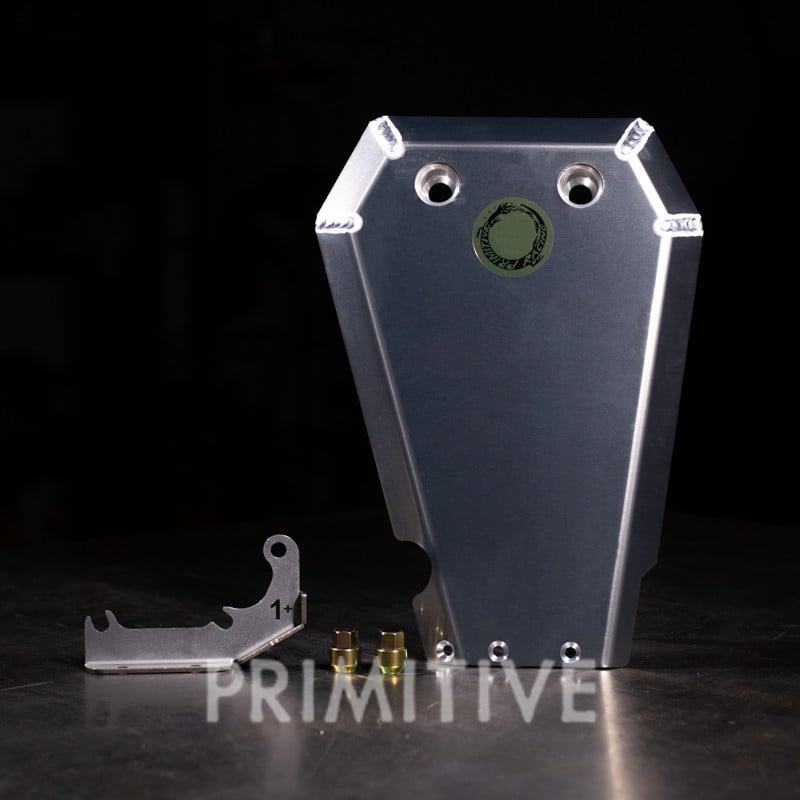

Uni 1-Bolt Rear Differential Skidplate

The Rear Skidplate is also included in this package, it protects the rear differential and completes the set.

Uni "1-Bolt" Rear Skid Plate

• Easily Fits with upgraded exhaust systems
• Fits with the factory vibration dampener
• Recessed hardware
• Easily bolts on
• Made of 3/16″ Aluminum
• Makes great jack up point!
• Weighs 2.01 pounds
• Does not fit with aftermarket Differential Carrier/Mount
• Extra / Replacement Hardware Pack: Here
• Schedule an install at Primitive (Tigard,OR) Here

$129.00$129.00
$0.00

Primitive Skidplates offer the best protection for the underside of your car. Rally proven and tough enough for off-road abuse. Robust enough to save you from that random piece of debris laying in the middle of the freeway. Ensures complete protection for the most vulnerable components. We have designed all our aluminum skidplates to be direct bolt on, no drilling, cutting or modifying required. When designing we consider things like approach angles, reversing over obstacles, jack-up points, ease of maintenance, and maximum ground clearance. We continue to advance, innovate and refine the segment with our new and existing designs.

Manufactured In:USA
Material:5052 Aluminum
Hardware Included:Yes
Spacer Material:6061 Aluminum
Construction:TIG Welded
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Anonymous

I own a 2022 subaru crosstrek premium and with my car payments coming to a close in about a year, I wanted to get into modifying my car with more off-road readiness/capabilities and was considering skid plates as one of my first purchases. I decided to splurge a little bit and spend it on a skid plate package for my subie. I was considering other brands but ultimately decided on primitive because for one, they are a select few who actually ship it to where I'm at (outside the 48 states) and I find the thickness (3/16") and weight for the full package ideal for my setup.

Shipping took a bit, about 2 weeks. The most difficult was installing the front skid plate because I didn't really had that much clearance to work with, even with my car elevated on the ramps, and hoisting and keeping it in place to screw the bolts was very tiring. Other than that, all's good! There are instructions included but I mostly relied on YouTube tutorials to install. It took just under 4 hours to do and if I had a prying tool (rather than a flathead screwdriver about half the size of my hand), definitely would have finished it faster in about 3 and a quarter. Note if you are going to purchase the full skid plate package, I highly recommend after taking out the splash shield and control arm brace, that you put on the mid armor skid plate first before the front skid as it does cover some bolts. Another note, as someone who rarely is handsy/mechanical with cars, should be easy to do on your own with the required tools.

The only knock I have is that the front skid plate does leave the sides of the engine bay exposed. Might have to do a DIY to see if I could cut the old sides of the splash shield. Overall, I'm happy how well it turned out!
