• 2013-2017 Crosstrek Front, Mid and Rear Skidplates

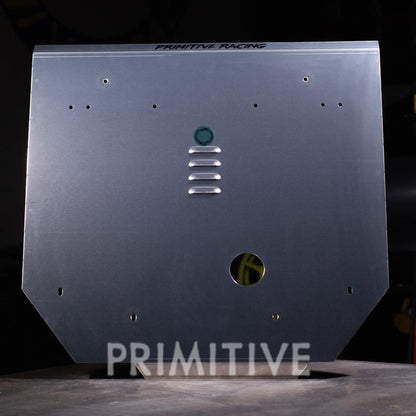

  • 2012-2016 Impreza & 2013+ Crosstrek Front Skidplate with oil hole
1 6

Skid Plate Package 13-17 Crosstrek (CVT Trans)

Skid Plate Package 13-17 Crosstrek (CVT Trans)

From: $608.00

Buy in a package and save 10%.

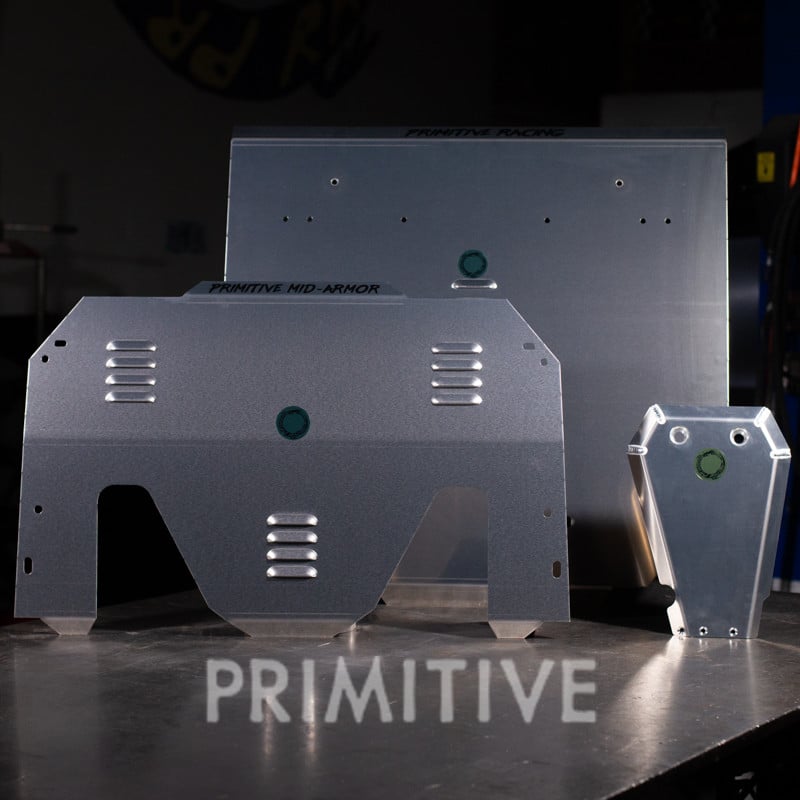

Triple Armor, comes standard with all three of our popular skidplates:

  • 3/16″ Front Skidplate
  • 3/16″ Transmission Skidplate
  • 3/16″ Uni 1-Bolt Rear Differential Skidplate

Scroll Down to build your custom package:

  • Have us modify the plate to work with the Rally Innovations lightbar
  • Add the optional oil hole for ease of access for oil changes
  • Add a Convenient Fumoto Oil Drain plug valve

Schedule an Install at Primitive (Tigard,OR) Here

SKU: CP Skid Plate Package 13-17 Crosstrek (CVT Trans)

View full details

Front Skidplate

The Front Skidplate is included in this package. It protects the vital parts on the bottom of your engine. Add the Rally Innovations lightbar modification below if you plan to install it with the Rally Innovations Light bar.

13-17 Crosstrek 3/16"

• Can be customized to fit with the Rally Innovations Light Bar.

$329.00

Optional Accessories: Oil Hole & Fumoto Valve

The oil change access holes will allow you to change your oil without having to remove your skidplate. The Fumoto Valve is an extremely convenient accessory, it replaces your stock drain plug with a fool proof valve that makes oil changes a tool and mess free job.

  • Choose "No Optional Accessories" to get the plate without an Oil Hole or Fumoto Valve.
  • Fumoto Valve not available without an Oil Hole because of clearance issues.
Select your options:
Oil Hole and Fumoto Valve (F108N)
$20.00

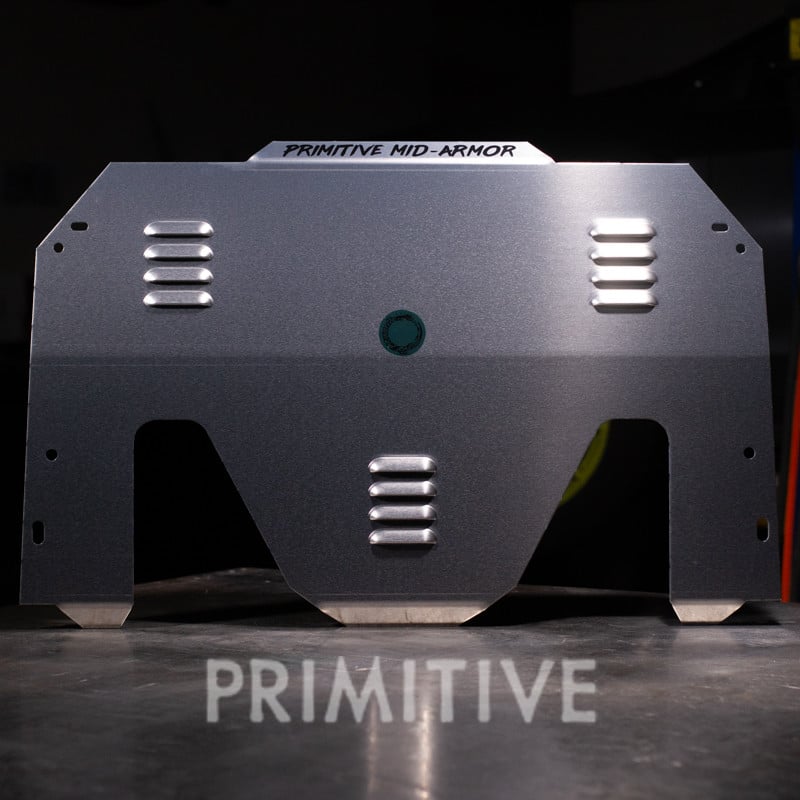

Transmission Skidplate

The Transmission Skidplate is included in this package. It protects the vulnerable CVT oil pan. A relatively small hit can cause an expensive repair bill and potentially leave you stranded.

3/16" Mid-Armor Transmission Skid Plate '13-17 Crosstrek '14-18 Forester

• 3/16” 5052 Aluminum.
• Polished Finish.
• Protects Transmission.
• Bolts directly to the frame.
• Vented for improved cooling.
• Weighs 11.65 pounds.
• Replacement Hardware Pack: Here
• Schedule an install at Primitive (Tigard,OR) Here

$150.00

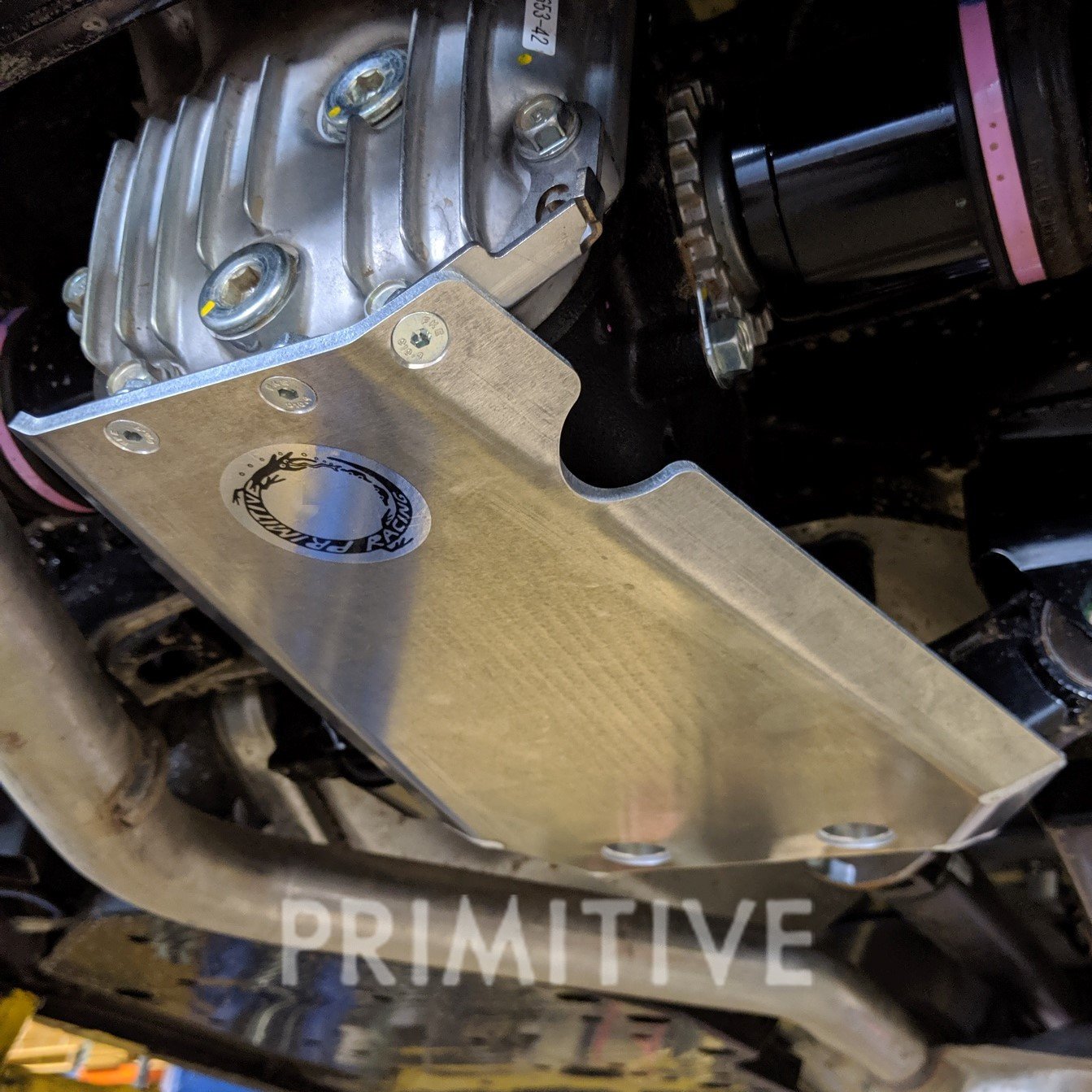

Uni 1-Bolt Rear Differential Skidplate

The Rear Skidplate is also included in this package, it protects the rear differential and completes the set.

Uni "1-Bolt" Rear Skid Plate

• Easily Fits with upgraded exhaust systems
• Fits with the factory vibration dampener
• Recessed hardware
• Easily bolts on
• Made of 3/16″ Aluminum
• Makes great jack up point!
• Weighs 2.01 pounds
• Does not fit with aftermarket Differential Carrier/Mount
• Extra / Replacement Hardware Pack: Here
• Schedule an install at Primitive (Tigard,OR) Here

$129.00
$0.00

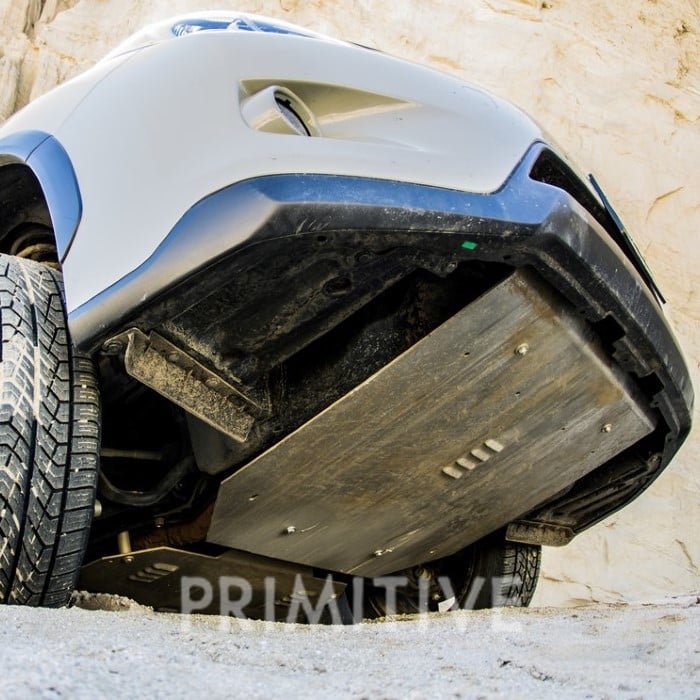

Primitive Skidplates offer the best protection for the underside of your car. Rally proven and tough enough for off-road abuse. Robust enough to save you from that random piece of debris laying in the middle of the freeway. Ensures complete protection for the most vulnerable components. We have designed all our aluminum skidplates to be direct bolt on, no drilling, cutting or modifying required. When designing we consider things like approach angles, reversing over obstacles, jack-up points, ease of maintenance, and maximum ground clearance. We continue to advance, innovate and refine the segment with our new and existing designs.

Manufactured In:USA
Material:5052 Aluminum
Hardware Included:Yes
Spacer Material:6061 Aluminum
Construction:TIG Welded
13-17 Crosstrek Front Skidplate Install Instructions.PDF
